Produktdetails:
Zahlung und Versand AGB:
|
| Name: | ANSI warf Stahly-sieb | Größe: | 1/2“ - 12" |
|---|---|---|---|
| Endenflansche: | ASME B16.5 | Kolbenschweißensenden: | ASME B16.25 |
| Markieren: | Inline-Rohrsieb,angeflanschtes Ypsilonsieb |
||

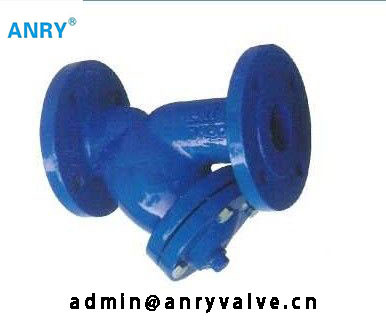

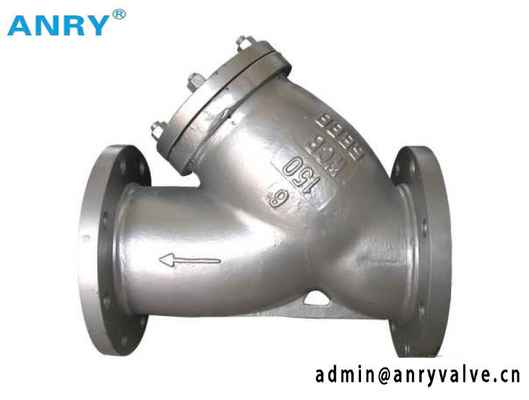

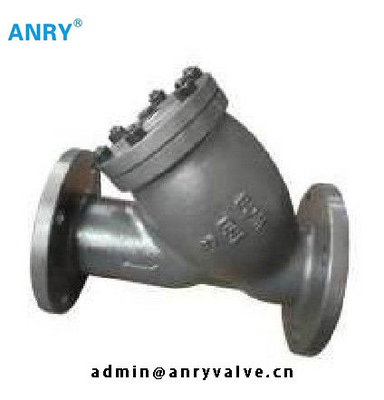

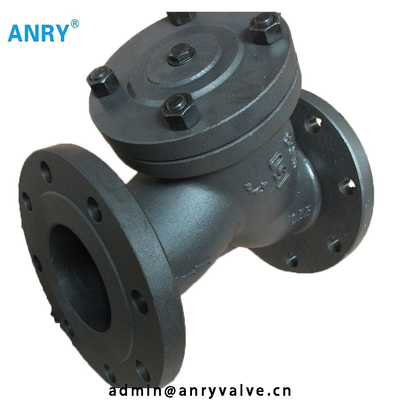

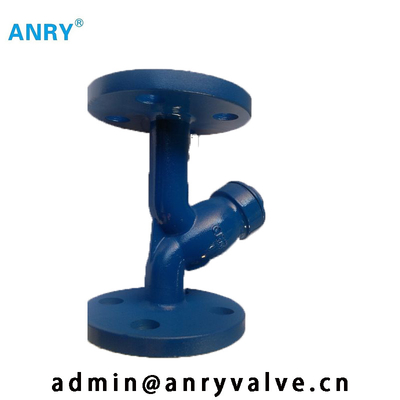

Körper-Masche 304 des ANSI-Form-Stahl-WCB CF8 SS316 flanschte Art Sieb Rfs Y
150/300LBS
|
NEIN. |
Teilname
|
ASTM-Material
|
||
|
Kohlenstoffstahl
|
18Cr-9Ni-2Mo
|
Kohlenstoffstahl
|
||
|
1
|
Körper
|
A216-WCB
|
A351-CF8M
|
A352-LCB
|
|
2
|
Mützenkappe
|
A216-WCB
|
A351-CF8M
|
A352-LCB
|
|
3
|
Schirm
|
A240-304
|
A420-316
|
A240-304
|
|
4
|
Mützendichtung
|
Graphite+3041)
|
PTFE
|
Graphite+3041)
|
|
NPS |
DN
|
D
|
D1
|
D2
|
L
|
T
|
Nd
|
|
1/2“
|
15
|
89
|
60,5
|
35
|
120
|
10
|
4-16
|
|
3/4"
|
20
|
98
|
70
|
43
|
140
|
11
|
4-16
|
|
1"
|
25
|
108
|
79,5
|
51
|
150
|
12
|
4-16
|
|
1.1/4"
|
32
|
117
|
89
|
64
|
170
|
12
|
4-16
|
|
1.1/2"
|
40
|
127
|
98,5
|
73
|
190
|
14
|
4-16
|
|
2"
|
50
|
152
|
120,5
|
92
|
215
|
16
|
4-19
|
|
2.1/2"
|
65
|
178
|
139,5
|
105
|
250
|
18
|
4-19
|
|
3"
|
80
|
190
|
152,5
|
127
|
285
|
19
|
4-19
|
|
4"
|
100
|
229
|
190,5
|
157
|
300
|
24
|
8-19
|
|
6"
|
150
|
279
|
241,5
|
216
|
380
|
26
|
8-22
|
|
8"
|
200
|
343
|
298,5
|
270
|
495
|
29
|
8-22
|
|
10"
|
250
|
406
|
362,0
|
324
|
545
|
35
|
12-25
|
|
12"
|
300
|
483
|
432,0
|
381
|
605
|
43
|
12-25
|
|
NPS |
DN
|
D
|
D1
|
D2
|
L
|
T
|
Nd
|
|
1.1/2"
|
40
|
127
|
114,5
|
73
|
203
|
21
|
4-22
|
|
2"
|
50
|
152
|
127
|
92
|
267
|
23
|
8-19
|
|
2.1/2"
|
65
|
178
|
149
|
105
|
296
|
26
|
8-22
|
|
3"
|
80
|
190
|
168,5
|
127
|
318
|
29
|
8-22
|
|
4"
|
100
|
229
|
200
|
157
|
356
|
32
|
8-22
|
|
6"
|
150
|
279
|
270
|
216
|
380
|
37
|
12-22
|
|
8"
|
200
|
343
|
330
|
270
|
495
|
42
|
12-22
|
|
10"
|
250
|
406
|
387,5
|
324
|
622
|
48
|
16-29
|
|
12"
|
300
|
483
|
451
|
381
|
698,5
|
51
|
16-32
|
